1-10 t/h
12-15% (可調)
熱源:熱空氣、電、蒸汽
適用范圍:適用于烘干大麻、藥材、樹葉、花卉、中藥等。
15324961622(微信同號) 714451877@qq.com枸杞有很多健康益處,如含有抗氧化劑、肥胖控制和多酚,它有助于降低患心血管疾病的風險。
水是枸杞中各種成分的生化反應所必需的。隨著枸杞水分含量的增加,茶葉的變化也會(huì )加快。當水分含量在7%以上時,沒有保存技術來保持其風味。因此,為了更好的儲存和更高的質量,茶需要干燥。經過干燥處理后,枸杞的含水量在4%~6%左右,可以延長其保質期。
枸杞干燥不僅可以去除茶葉中的水分,而且對枸杞的品質也有很大的影響。干燥是控制枸杞中酶活性的關鍵。干燥過程中會(huì )發生化學變化,從而增強茶的色、香、味、形,減少苦味,提高枸杞的品質。
枸杞網帶式烘干機適用于塊狀、條狀、片狀和顆粒狀的商業作物,如:洋蔥、大蒜、辣椒、杏子、瓜子、花生、紅薯、土豆、木薯、枸杞、紅棗、香草、甜瓜、蔬菜、水果等。
枸杞網帶式烘干機也可以做茶葉烘干,與微波烘干機相比,容量更大,烘干速度更慢。茶葉可以從料斗通過輸送機送到帶式干燥機的上層,然后流到帶式干燥機底部的卸料窗口。由于每層的傳送帶可以在一層上進行兩次往復干燥,因此獲得了寬的干燥區域,實現了緊湊和節省空間的結構。

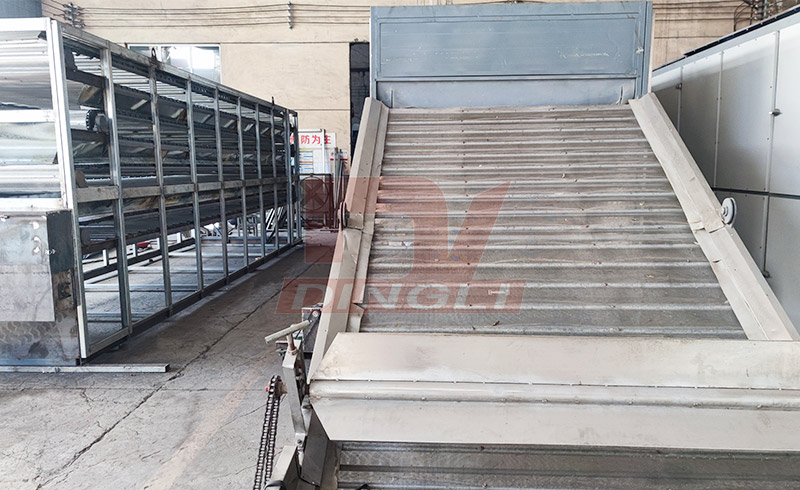

Materials are uniformly put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The drier is composed of several units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process. This process will bring the material water away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material temperature. The final products after drying will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the users’ demand. The unit number can be selected according to the demand.
DW series multi-layer belt dryer is a continuous drying equipment for batch production. It is suitable for large-scale production of difficult-to-dry materials with low drying rate. The equipment has compact structure, small floor area, simple operation, convenient maintenance and stable operation.
型號 | 皮帶寬度 | 干燥段長度 | 原材料攤鋪厚度 | 操作溫度(℃) | 蒸汽壓力(MPa) | 水分蒸發量(kg/h) | 總功率 | 外形尺寸L*W*H | 重量 | ||
DW-5-1.2-8 | 1.2 | 8 | 10-50 | 50-120 | 0.2-0.5 | 100-250 | 21.2 | 11 | 1.6 | 2.7 | 3800 |
DW-5-1.2-10 | 1.2 | 10 | 120-350 | 12.5 | 1.6 | 2.7 | 3800 | ||||
DW-5-1.6-8 | 1.6 | 8 | 110-320 | 11 | 2.0 | 2.7 | 4400 | ||||
DW-5-1.6-10 | 1.6 | 10 | 140-320 | 22.7 | 12.5 | 2.0 | 2.7 | 5550 | |||
DW-5-2-8 | 2 | 8 | 150-450 | 11 | 2.4 | 2.7 | 5350 | ||||
DW-5-2-10 | 2 | 10 | 200-550 | 12.5 | 2.4 | 2.7 | 6800 | ||||
注:多層網帶式干燥機有3層、5層、7層和9層。 |
